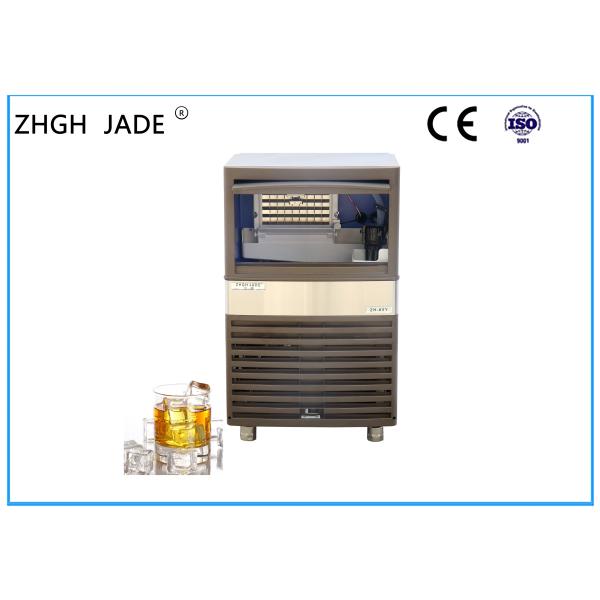

60kgs/24h Output Food Grade Plastic Commercial Undercounter Ice Cube Machine
Product feature of Small Ice Machine
1. The ice have a high hardness,the freezing point gets minus 20°C below,crystal and clear,not easy to melt and cooling quickly.
2. High quality 304 stainless steel and ABS plastic, attractive appearance,stable,practical.
3. Front air filtering device, easy to clean and extend machine life.
4. Food safe grade ice maker.
5. Ice production of flowing water type ice maker is 10% more than similar machines.
6. Vertical evaporator to reduce energy consumption, cooling speed increase with large heart transfer area, very suitable fast food restaurant, coffee shop, beverage shops and other place.
7. Strict process requirement,world famous brand component, low failure rate and long service life.
Parameter of Small Ice Machine
| Product Description | Small Ice Machine |
| Model | ZH-130Y |
| Dimension(L*W*H)mm | 500*580*820with feet |
| Output(lb/24hr) | 132lbs=60kgs/24h |
| Bin Capacity (lb) | 44lbs=20kgs |
| Voltage (V/Hz) | 220V/50Hz |
| Compressor | Secop |
| Power (W) | 370 |
| Condenser Unit | Water Cooling |
| Refrigerant | R404A |
| Power Plug | 10A |
Application of Small Ice Machine
Cube ice machines are suitable for: high-grade cafe, high-grade bar, private club, starred restaurant, hotel, milk tea shop, high-grade entertainment venue,etc.
Inner Components And Country of Origin
1. Compressor—Germany SECOP, USA Copeland;
2. Expansion Valve—Denmark Danfoss;
3. Defrost Solenoid Valve—Japan Saginomiya;
4. Condenser Fan—Germany EBM.
Operational Environment:
► Ambient temperature:2-43℃,water temperature:2-38℃,water pressure:0.13Mpa~0.55Mpa
Space Requirement for Installation:
► The top and two sides of the machine should be at least 25cm away from the wall, at least 12cm for the back of machine.
► The air outlet of air cooled machine should be free of obstruction.
The maximum Daily Output is tested under:
► Room temperature of 20℃,Water temperature of 10℃.
Production line
Package&Shipping
After-sale Service
► We respect your feedback after you received the goods;
► We provide 12 months warranty for the whole unit;
► We promise all spare parts will be available during the lifetime of the goods;
► We will respond to your complaint within 24 hours.
FAQ:
Q:1. What is the Payment Terms?
A:T/T: 30% in advance as deposit, 70% balance should be paid before shipment.
Q:2. What is the delivery time?
A:Sample machines delivery during 7-15 days; orders delivery during 15-30 days.
Q:3. Can we put our own logo on the machine?
A:Yes, we can do OEM for you. ODM also is welcomed
Q:4. What is the warranty?
A:One year for the whole unit.
Q:5. Is sample order available?
A:Yes, it is. Sample order is acceptable.
Product Tags:
|
|
Undercounter Electric Ice Machine , Durable Water Cooled Ice Machine Images
|
